Compact size LED module

Part no: BV-AL-2&3-X

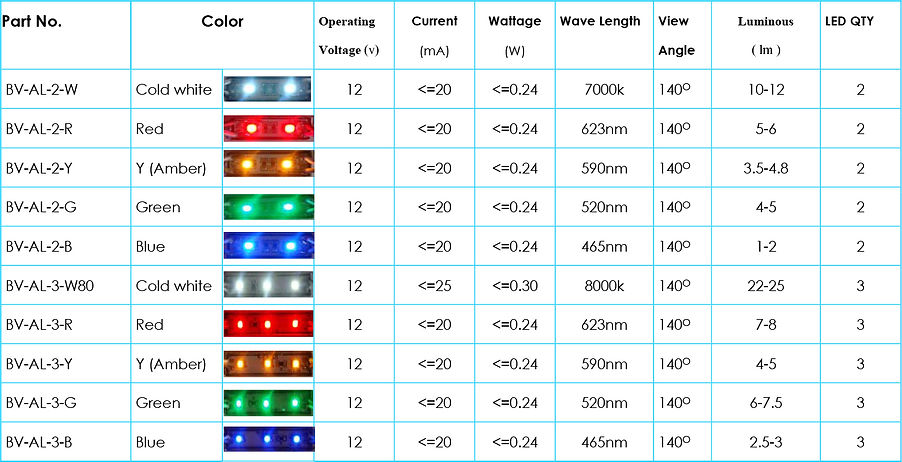

Technical Parameter: (TA=25℃)

  • BV-AL-2 : tiny size, thin & small, excellence for small channel letters, 4 modules/ft

  • BV-AL-3 : compact size, prefect for channel letters, cabinet signs, out/indoor halo effects, 3 modules/ft

  • State-of-art thermal management technology with aluminum housing in good heat diffusion for long life span

  • Waterproof index : IP67Easy installation with “3M 9786” tape on back, and fixing holes at both ends.

  • 5 years warranty

  • UL#: E318168

Features:

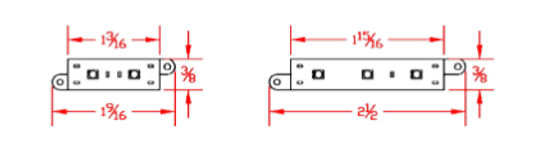

Structure Dimensions:

It illuminates any size of your channel letters, light cabinets and makes your work out shining your neighbors. With 2 compact sizes, is a right light source for all type of stroke width in outdoor and indoor applications.​

Application:
